BPM 724

    Maritime 24.0" Widescreen Monitor for ECDIS &/or Radar Applications

    Baytek develops and produces the BPM monitor series for maritime/naval applications. The BPM series is designed and manufactured to withstand the harsh conditions encountered in the maritime environment.

    They are build to meet and exceed stringent testing requirements and are already tested and approved by different classes. Wherever monitors are required for critical maritime applications, Baytek products will be the right choice.

    Baytek has incorporated unique characteristics in the BPM series that will simplify integration in existing systems, expand the lifetime of the products and reduce the total cost of ownership.

    Quality and profitability guaranteed

    We have our own manufacturing facilities and Color Calibration Center (CCC) to insure the Baytek high quality standards. So we are able to transform customer requirements into reliable solutions.

    ECDIS - Radar

    Wide Dimming

    Wide Temperature Range

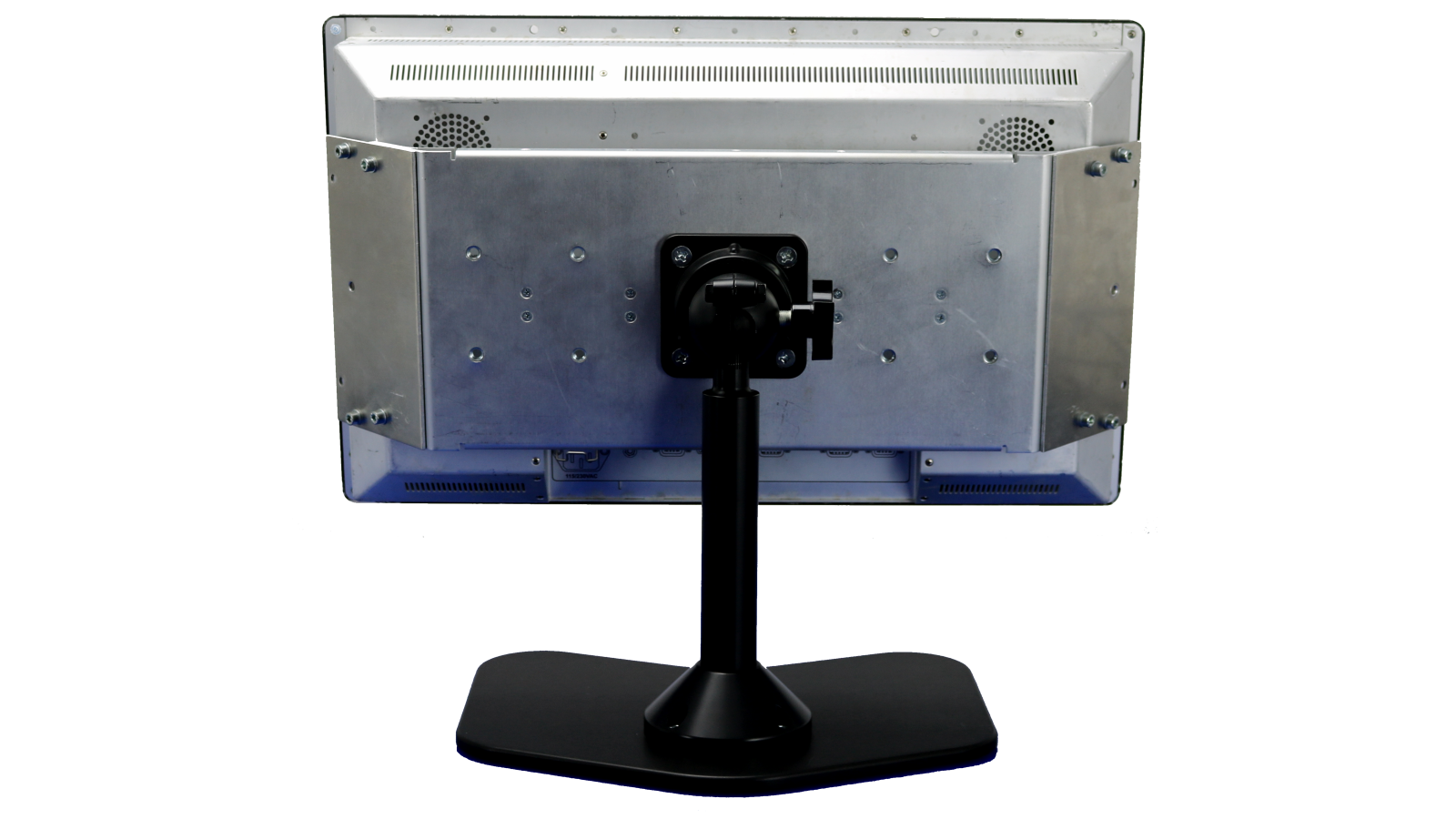

    Design Monitor for Console & Rack Mounting
    Panel Size 24" TFT Display
    Resolution FullHD 1080p (1920x1080)
    Aspect ratio 16:9
    Highlights ADA - Automatic dynamic adjustment, Auto-phase, Auto-scaling, Auto-tracking, DTC - Drift tolerance compensation, Anti-glare/anti-static mineral glass pane, Frontside arranged OSD keyboard, Customized variants available, Wide range backlight dimming
    Options Alarm buzzer, Front handles, Customizied RAL paint finish, Tripods, Touch screen, Video connectors, PIP
    Power Supply 18-36 VDC power supply (DC24), 85-264 VAC power supply (AC)
